| Olson Automatic Self Cleaning Filters |

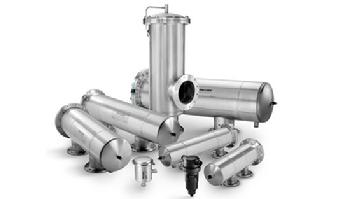

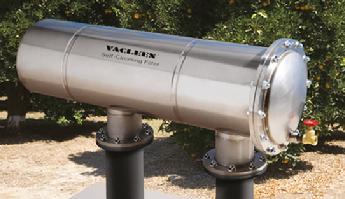

The Olson VACLEEN stainless steel filter is an automatic, state-of-the-art, self-cleaning filtration system providing excellent filtration for industrial and agricultural applications. The system's unique backflush cleaning cycle provides uninterrupted filtration due to the speed of the cleaning process and the minimal amount of system pressure drop. Sound engineering principles and modern technology, combined with user needs and experience, have produced the VACLEEN Self-Cleaning Filter.
|
 |

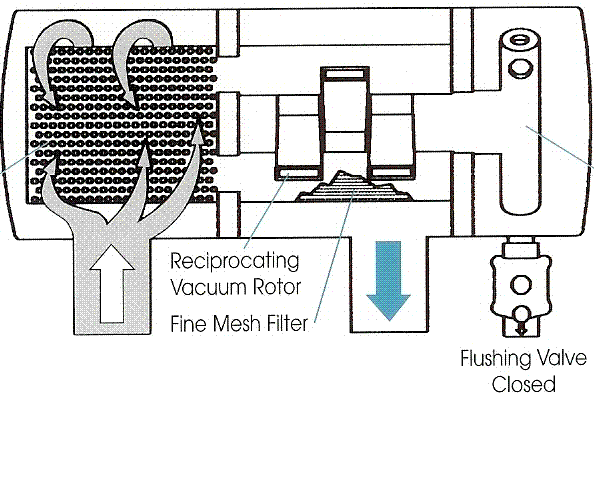

| Dirty Water Enters and Clean Water Exits |
|
| EFFICIENT The reverse flow backwash is an effective method of cleaning a screen. Reciprocating flush nozzles allow use of a small flush valve creating greater differential pressure across the screen and through the nozzle. A minimal amount of water is used for a back-washing cycle. The flushing cycle uses only a small portion of the filter flow capacity during cleaning. Even during the backflush cycle, the filtration process is uninterrupted. The filterıs cleaning process is fully automatic. The unitıs AWWA Class D flanges simplify installation. Models are available which require no power. EFFECTIVE Offers filtration to 15 microns (800) mesh). Removes suspended solids, including organic materials such as algae. Available in models up to 4,000 gpm. Filters can be manifolded for greater requirements. The sintered stainless steel element assures mesh-size stability. Operates at temperatures to 180° F. ECONOMICAL Lower prices than expensive sand bed filters. Little or no maintenance. All working mechanisms can be removed from the filter for service. Filter can be serviced without removal from the pipeline.
|
|
|
|
